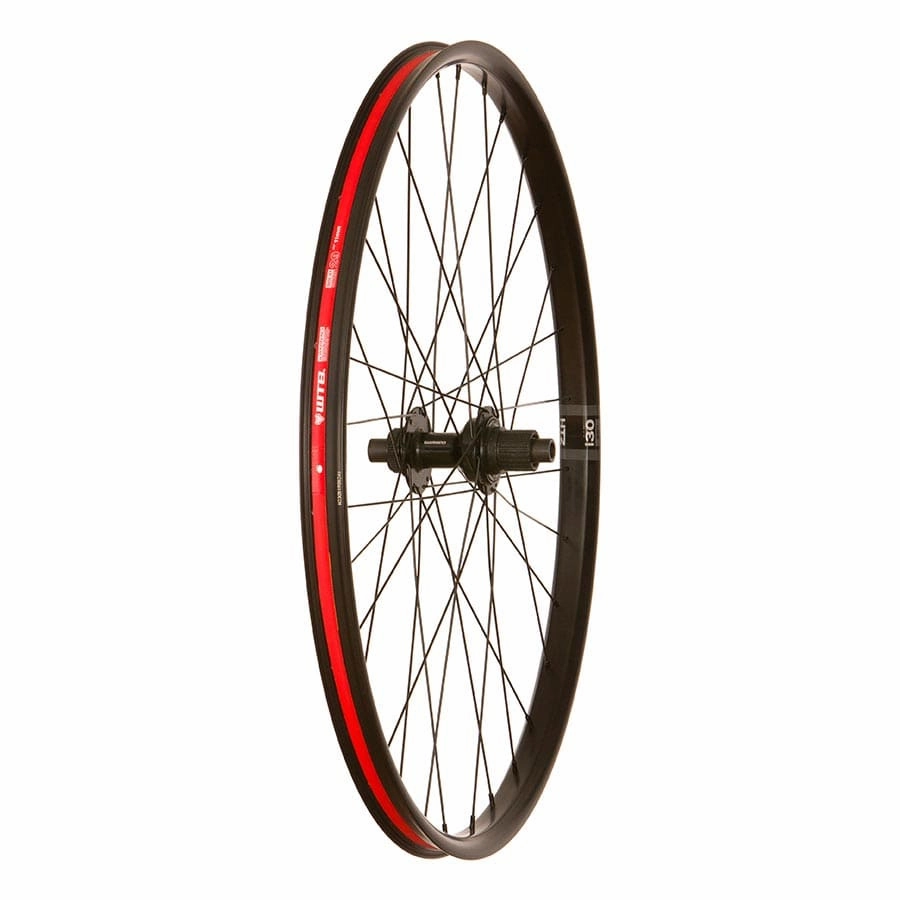

Rims: WTB HTZ i30 29''

• ETRTO 622-30

• Inner width: 30mm

• Asymetric and angled spoke hole drilling

• Reinforced I-Beam profile

• Strong sleeved joint

• Drilled for Presta valve

• TCS 2.0 Tubeless compatible

• Solid Strip incl.

• 32 holes

  Front hub (-01): Shimano HB-TC500-15-B

• 15x110mm

• Center Lock (6-Bolt adapter incl.)

• Sealed cartridge bearings

• Labyrinth & Contact seal

  Rear hub (-02): Shimano FH-TC600-HM-B

• 12x148mm

• Center Lock (6-Bolt adapter incl.)

• Sealed cartridge bearings

• Labyrinth & Contact seal

• Quick Engagement Pawl & Ratchet system

• Compatible with 8/9/10/11 speed MTB

  Rear hub (-03): Shimano FH-TC600-MS-B

• 12x148mm

• Center Lock (6-Bolt adapter incl.)

• Sealed cartridge bearings

• Labyrinth & Contact seal

• Quick Engagement Pawl & Ratchet system

• Compatible with Microspline 12 speed

  Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), 14mm Brass Polyax Nipples (Black)

Attributes

Position	Rear
Wheel Diameter/ISO	29'' / 622
Rim inner width range	28-34.9mm
Axle Type	12mm TA
Hub Model	FH-TC600-MS-B
Rim Construction	Double wall, Sleeved
Rim Internal Width	30mm
Depth	19mm
Rim Drilling	32
Valve	Presta
Rim Color	Black
Rim External Width	34mm
Skewers Included	No
Wheel-Brake Comp.	Disc Center Lock / IS 6-Bolt
Spoke Type	Sapim Race
Wheel Tire Type	Tubeless Compatible
Freehub Body	Shimano Micro Spline
Hub Spacing	148mm
Rim Material	Aluminum
Rim Model	WTB HTZ i30
