Rims: WTB HTZ i30 29"
ETRTO 622-30
Inner width: 30mm
6061 series aluminum
Asymetric and angled spoke hole drilling distributes spoke tension more evenly
Reinforced I-Beam profile
Strong sleeved joint
Drilled for Presta valve
TCS 2.0 Tubeless System compatible
Solid Strip included
Tubeless valve included
32 holes
Front hub: Shimano XT HB-M8110-B Boost
15x110mm (Axle not included)
Center Lock (6-Bolt adapter included)
Polished angular contact bearings
Contact sealed hub
Rear hubs options: Shimano XT FH-M8010-B (Boost, HG) / FH-M8110-B (Boost, MS) / FH-M8130-B (SuperBoost, MS)
Center Lock (6-Bolt adapter included)
Quick Engagement Freehub, 36 Points, 10 deg. engagement
HG compatible Shimano 11spd and Sram NX / SX splined 12spd (10spd and below needs spacer)
MS compatible 12 Spd Shimano Micro Spline only

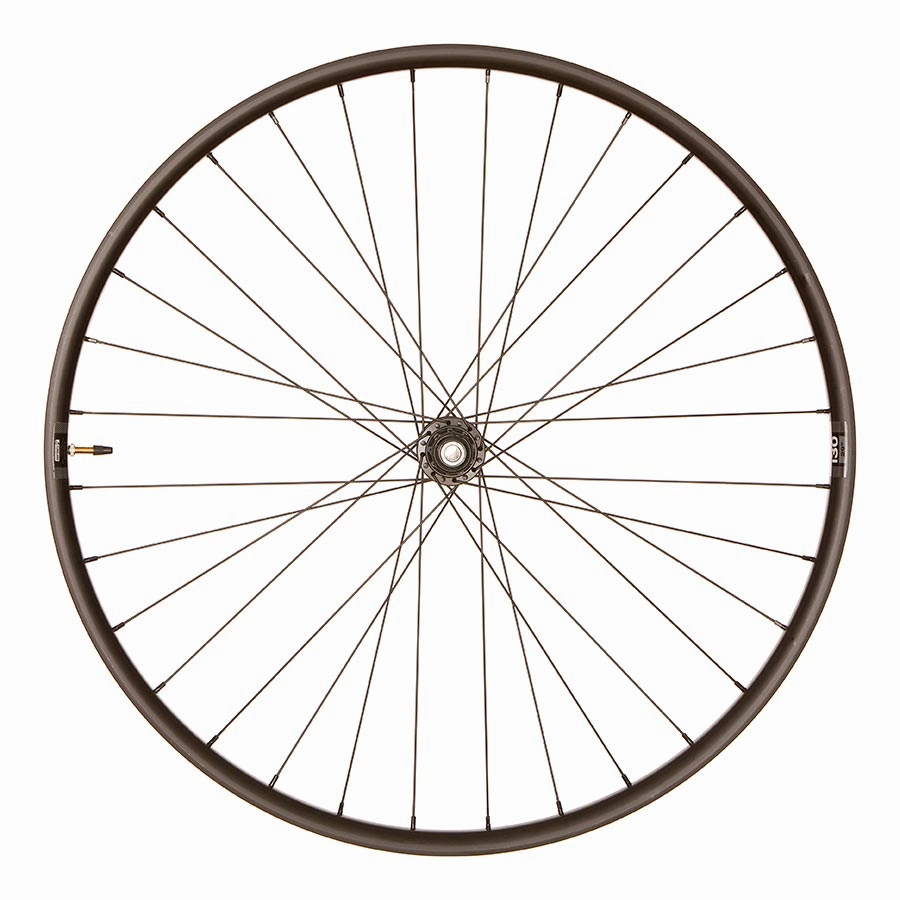

Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), Brass Polyax Nipples (Black)| Rim Color | Black |
| Rim Drilling | 32 |
| Valve | Presta |
| Hub Spacing | 148mm |
| Rim inner width range | 28-34.9mm |
| Rim Internal Width | 30mm |
| Rim Material | Aluminum |
| Rim Model | WTB HTZ i30 |
| Position | Rear |
| Rim Construction | Double wall Sleeved |
| Axle Type | 12mm TA |
| Freehub Body | Shimano HG 11 |
| Skewers Included | No |
| Spoke Type | Sapim Race |
| Hub Model | Shimano XT FH-M8010-B |
| Wheel Diameter/ISO | 29 / 622 |
| Wheel Tire Type | Tubeless Compatible |
| Wheel-Brake Comp. | Disc Center Lock / IS 6-Bolt |
