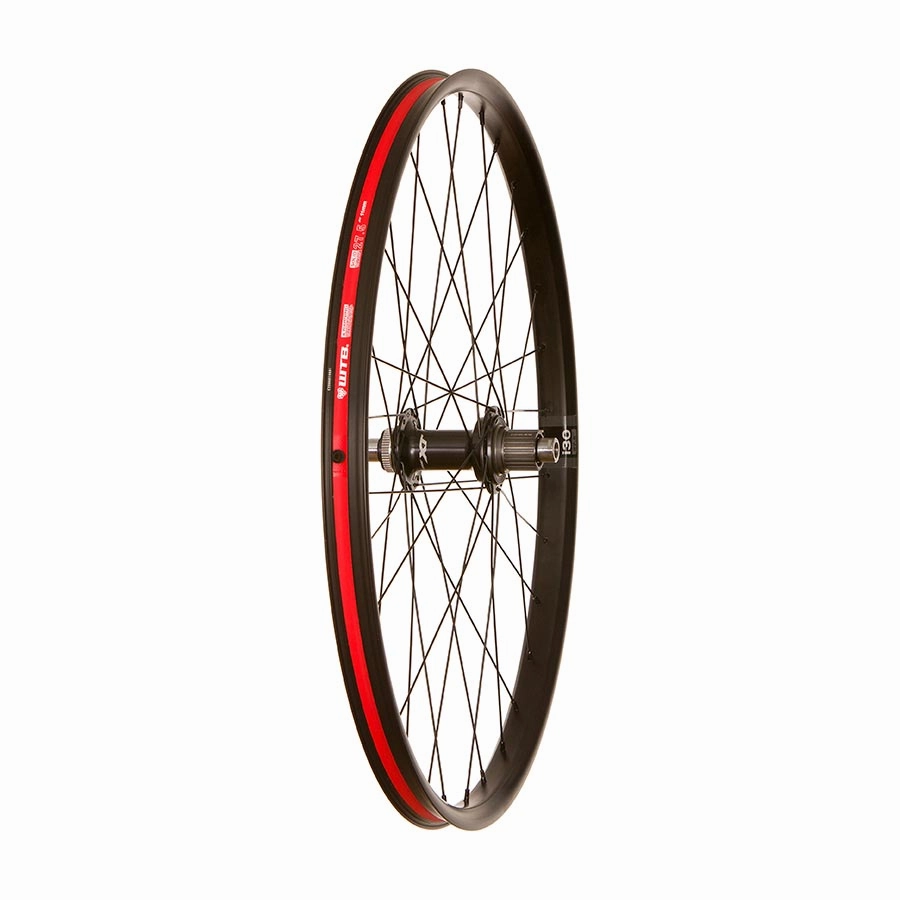

Rims: WTB HTZ i30 27.5"
ETRTO 584-30
Inner width: 30mm
6061 series aluminum
Asymetric and angled spoke hole drilling distributes spoke tension more evenly
Reinforced I-Beam profile
Strong sleeved joint
Drilled for Presta valve
TCS 2.0 Tubeless System compatible
Solid Strip included
Tubeless valve included
32 holes
Front hub: Shimano XT HB-M8110-B Boost
15x110mm (Axle not included)
Center Lock (6-Bolt adapter included)
Polished angular contact bearings
Contact sealed hub
Rear hubs options: Shimano XT FH-M8010-B (Boost, HG) / FH-M8110-B (Boost, MS) / FH-M8130-B (SuperBoost, MS)
Center Lock (6-Bolt adapter included)
Quick Engagement Freehub, 36 Points of Contact, 10 deg. engagement
HG compatible Shimano 11spd and Sram NX / SX splined 12spd (10spd and below needs spacer)
MS compatible 12 Spd Shimano Micro Spline
Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), Polyax Nipples (Black)| Hub Model | Shimano XT FH-M8130-B |
| Position | Rear |
| Wheel Tire Type | Tubeless Compatible |
| Hub Spacing | 157mm |
| Wheel Diameter/ISO | 27.5 / 584 |
| Axle Type | 12mm TA |
| Rim Internal Width | 30mm |
| Spoke Type | Sapim Race |
| Rim Construction | Double wall Sleeved |
| Freehub Body | Shimano Micro Spline |
| Rim Color | Black |
| Rim Material | Aluminum |
| Rim Model | WTB HTZ i30 |
| Rim inner width range | 28-34.9mm |
| Skewers Included | No |
| Wheel-Brake Comp. | Disc Center Lock / IS 6-Bolt |
| Rim Drilling | 32 |
| Valve | Presta |
